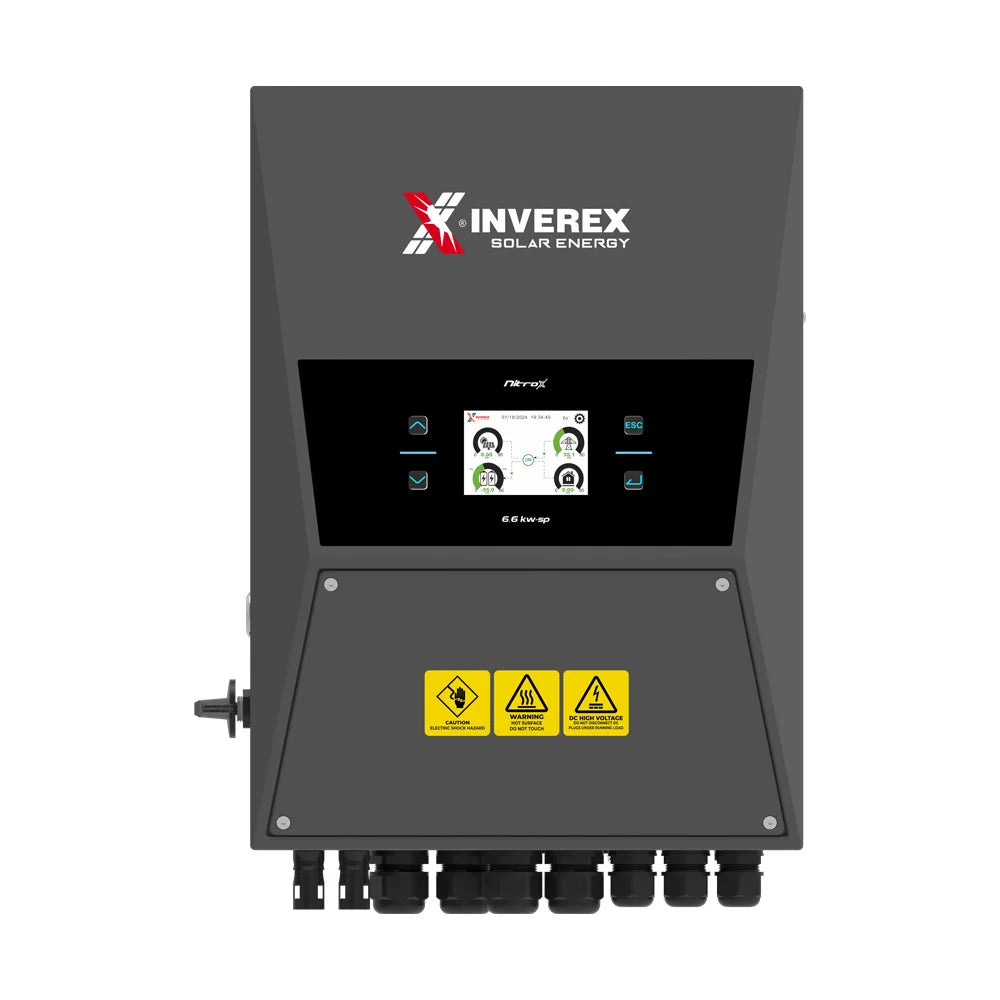

Inverex Nitrox 6.6kW Hybrid Solar Inverter

Product Details:

The NitroX 6.6KW SP Hybrid Inverter is a powerhouse for modern solar systems. Built to handle high solar input and smart energy management, it’s ideal for hybrid homes and businesses demanding top performance and reliability.

Features:

• 10.5KW PV Input: Wide 150–425VDC MPPT for max energy capture
• Dual MPPTs: Independent strings (2/1+1) for efficient tracking
• 140A Charge/Discharge: Fast cycles, perfect for large systems
• Parallel Ready: Stack up to 16 units, both on-grid & off-grid
• Touch LCD + IP65: Vibrant screen in weatherproof casing
• AC Coupling: Retrofit-friendly for system upgrades
• Time-Based Battery Mode: 6 customizable time slots for charging/discharging
• Generator Support: Stores DG energy for hybrid setups
• Silent Operation: Under 30 dB noise, suitable for indoor use
• Air Cooling: Smart thermal control from -40°C to +60°C
• Advanced Protections: Overcurrent, islanding, surge, fault detection
• High Efficiency: 97.6% peak efficiency with <0.5% DC ripple
• Smart Communication: RS485/RS232/CAN + optional WiFi/4G
• 5-Year Warranty: Backed by trusted Inverex support

Documents:

Inverex Nitrox 6.6kW Hybrid Solar Inverter Datasheet.pdf
