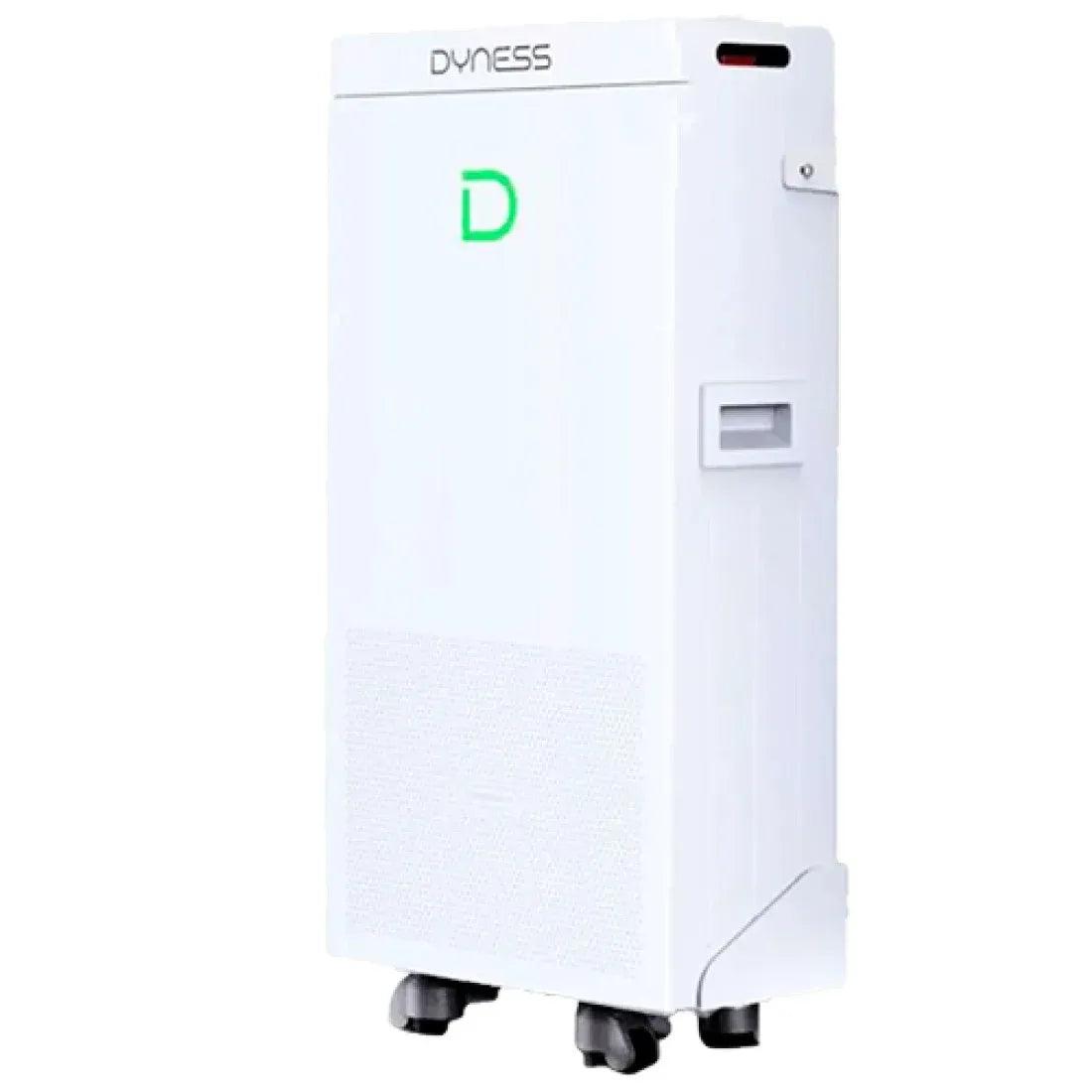

DYNESS POWERBRICK MAX 16.07KWH IP20 LITHIUM ION BATTERY 51.2V – 314AH

Product Details:

The Dyness PowerBrick Max (also referred to as the PowerBrick SC) is a high-capacity, low-voltage lithium-ion battery designed for residential and light commercial solar energy storage. It features a nominal capacity of 16.076 kWh using advanced 314Ah LiFePO4 cells, making it one of the most powerful single-unit residential batteries in the PowerBrick series.

Features:

• Capacity: 16.076 kWh nominal energy, with approximately 15.272 kWh of usable energy.
• Battery Chemistry: Lithium Iron Phosphate (LiFePO4/LFP), known for safety and thermal stability.
• Voltage: 51.2V nominal (48V category).
• Performance: Rated for over 8,000 cycles at a 95% Depth of Discharge (DoD).
• Expansion: Highly scalable; up to 50 units can be connected in parallel for a total capacity of up
•  Charging/Discharging: Recommended rate of 140A (7.168 kW) and a maximum continuous rate of 200A (10.24kW)

Documents:

DYNESS POWERBRICK MAX 16.07KWH IP20 LITHIUM ION BATTERY 51.2V – 314AH.pdf
