Overview:

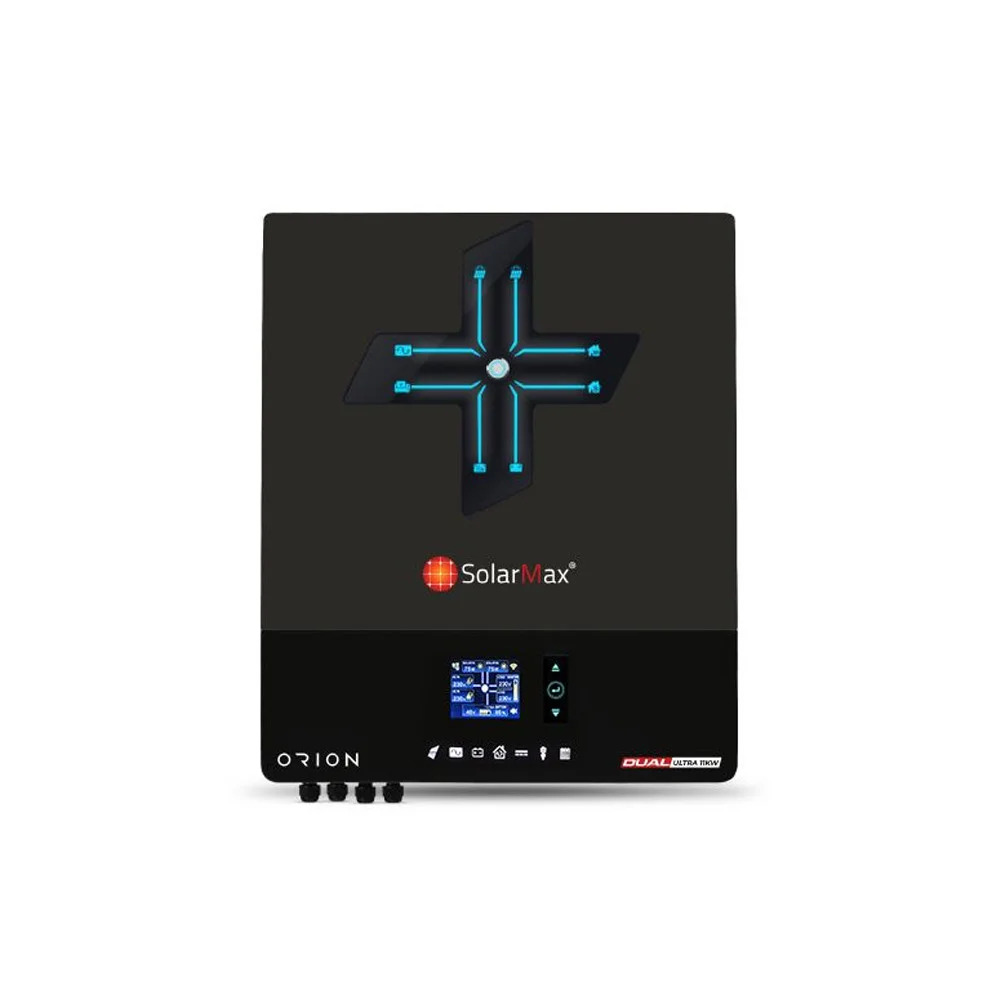

SolarMax Introduced first time in Pakistan Orion Ultra 11KW Hybrid Inverter with Dual MPPT 12KW PV inputs Equipped with 2 AC Inputs & 2 smart AC outputs for Load, CT sensor, and user-friendly interface, Orion Ultra is top-equipped solar inverter. With two independent input power sources – utility and generator – it ensures uninterrupted AC power and incorporates a super large charger (150A) for fast battery charging, even with limited available time from AC or solar sources. In addition, the SolarMax Orion Ultra offers a second AC output, enabling users to customize cut-off voltage, state of charge (SoC) percentage, discharge time, and scheduled on/off time.
Features:
• Pure sine wave inverter
• Grid Feeding Feature for Net Metering
• Built-in LED bars to indicate the energy source and power flow
• Touchable button with seven-page colorful LCD
• Built-in Wi-Fi for mobile monitoring and OTA firmware upgrade
• Supports USB On-the-Go function
• Built-in current transformer sensor to meet self-consumption application
• Dual outputs for smart load management
• Two independent AC power sources connected and switched automatically
• Configurable output usage timer and prioritization
• Configurable charger source priority
• Configurable battery charging current
• Reserved communication ports for BMS (RS485, CAN-BUS)
• Reserved external BTS (Battery Temperature Sensor) detection
• Reserved optional GFCI, Rapid shutdown, AFCI detections
• Built-in Parallel Kit for Parallel operation with 6 units
• Built-in anti-dusk kit
